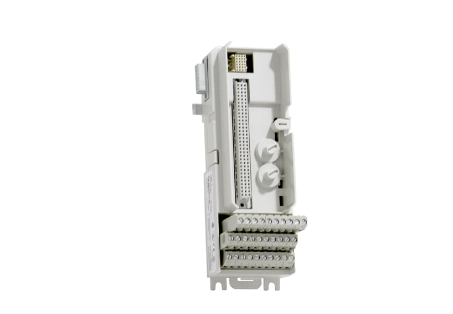

ABB Control System 16 channel 50 V compact module termination unit TU810V1 3BSE038415R1

Brand Name : ABB

Model Number : PM864AK01

Place of Origin : Sweden

MOQ : 1

Price : negotiable

Payment Terms : TT West Union

Supply Ability : 100

Delivery Time : 2-3 work days

Packaging Details : New in original box

Brand : ABB

Model : TU810V1

Number of channels : 8

Product Name : compact module termination unit

Warranty : 12 months

System : Control

Part No : 3BSE038415R1

Condition : New

Lead time : In Stock

Country of origin : Sweden

Contact Now

ABB Control System 16 channel 50 V compact module termination unit PTU810V13BSE038415R1

General info

Article number	3BSE038415R1
Type	Analog Output
Signal specification	0..20 mA, 4..20 mA
Number of channels	8
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800

Detailed data
Diagnostics
Environment and certification
Compatibility
Dimensions

The AO810/AO810V2 Analog Output Module has 8 unipolar analog output channels. To supervise the communication to the D/A-converters the serial data is read back and verified. The opencircuit diagnostic is received during the readback. The module performs self-diagnostic cyclically. The module diagnostics includes process power supply supervision, which is reported when supply voltage to output circuitry is to low. The error is reported as a channel error. The channel diagnostic includes fault detection of the channel (only reported on active channels). The error is reported if the output current is less than the output set value and the output set value is greater than 1 mA.

Features and benefits

8 channels of 0...20 mA, 4...20 mA outputs
OSP sets outputs to predetermined state upon error detection
Analog Output is to be short circuit secured to ZP or +24 V
